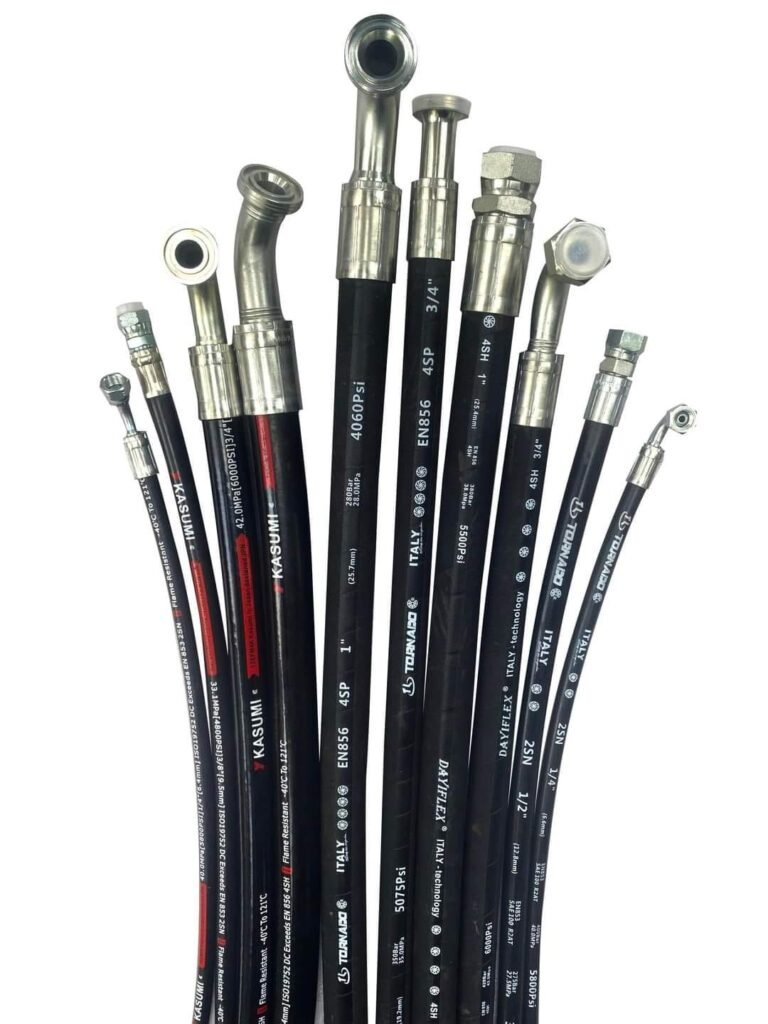

HIGH PRESSURE HOSE ASSEMBLIES(SPIRAL HOSE)
Inner Tube: CR Synthetic Tube
Cover: CR Synthetic Tube
Reinforcement: Four Spiral Steel Wire.
Temperature.Range:-40°F to +212°F (-40°C to +100°C).
Application: These hose has higher working pressure under the same working temperature. Four Layers of high-tensile spiral wire provide the hose with the best abrasion resistance and impulse fatigue resistance. Therefore, these hoses are used in oil field services, paving, road maintenance, automotive, construction, Ground and building maintenance, ground support equipment, material handling, Etc.
Hose I.D | Hose I.D | Hose ROD | Hose O.D | Working Pressure | Working Pressure | Minimum Bend radius | Minimum Bend radius | Weight | Weight |
inch | mm | mm | mm | psi | MPa | inch | mm | lbs/ft | kg/m |
3/4 | 19.0 | 28.4 | 32.0 | 6000 | 42.0 | 11.0 | 280 | 1.01 | 1.54 |
1 | 25.4 | 35.2 | 39.0 | 5500 | 38.0 | 13.5 | 340 | 1.34 | 2.03 |
1-1/4 | 31.8 | 41.9 | 45.3 | 4700 | 32.5 | 18.0 | 460 | 1.61 | 2.45 |
1-1/2 | 38.1 | 48.8 | 53.3 | 4200 | 29.0 | 22.0 | 560 | 2.06 | 3.13 |
2 | 50.8 | 63.2 | 68.0 | 3600 | 25.0 | 27.0 | 700 | 3.05 | 4.63 |
