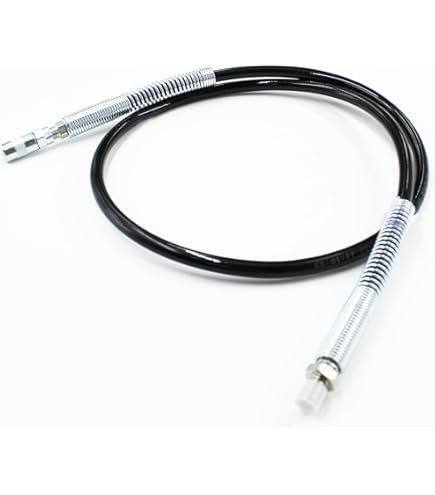

GREASE HOSE PIPE
Inner Tube: Thermoplastic Elastomer
Reinforcement: Single Braid Of Synthetic Fiber.
Cover: Polyurethane, Black Colour.
Application: specially designed for diverse greasing and lubrication applications of the industrial, handheld, or automatic (centralized) Grease Distribution Equipment.
Item Code | Dash Size | DN | ID | ID | OD | OD | WP | WP | BP | BP | BR/r | BR/r | W |
Inch | mm | Inch | mm | psi | bar | psi | bar | Inch | mm | g/m | |||
PH734-04 | -04 | 06 | 1/4 | 6.4 | 0.409 | 10.4 | 1523 | 105 | 6090 | 420 | 1.2 | 30 | 70 |
PH734-05 | -05 | 08 | 5/16 | 8.0 | 0.510 | 13.0 | 1523 | 105 | 6090 | 420 | 1.6 | 40 | 112 |
PH734-06 | -06 | 10 | 3/8 | 9.5 | 0.551 | 14.0 | 1523 | 105 | 6090 | 420 | 2.0 | 50 | 160 |
PH734-08 | -08 | 12 | 1/2 | 12.7 | 0.690 | 14.0 | 1523 | 105 | 6090 | 420 | 3.0 | 75 | 200 |
